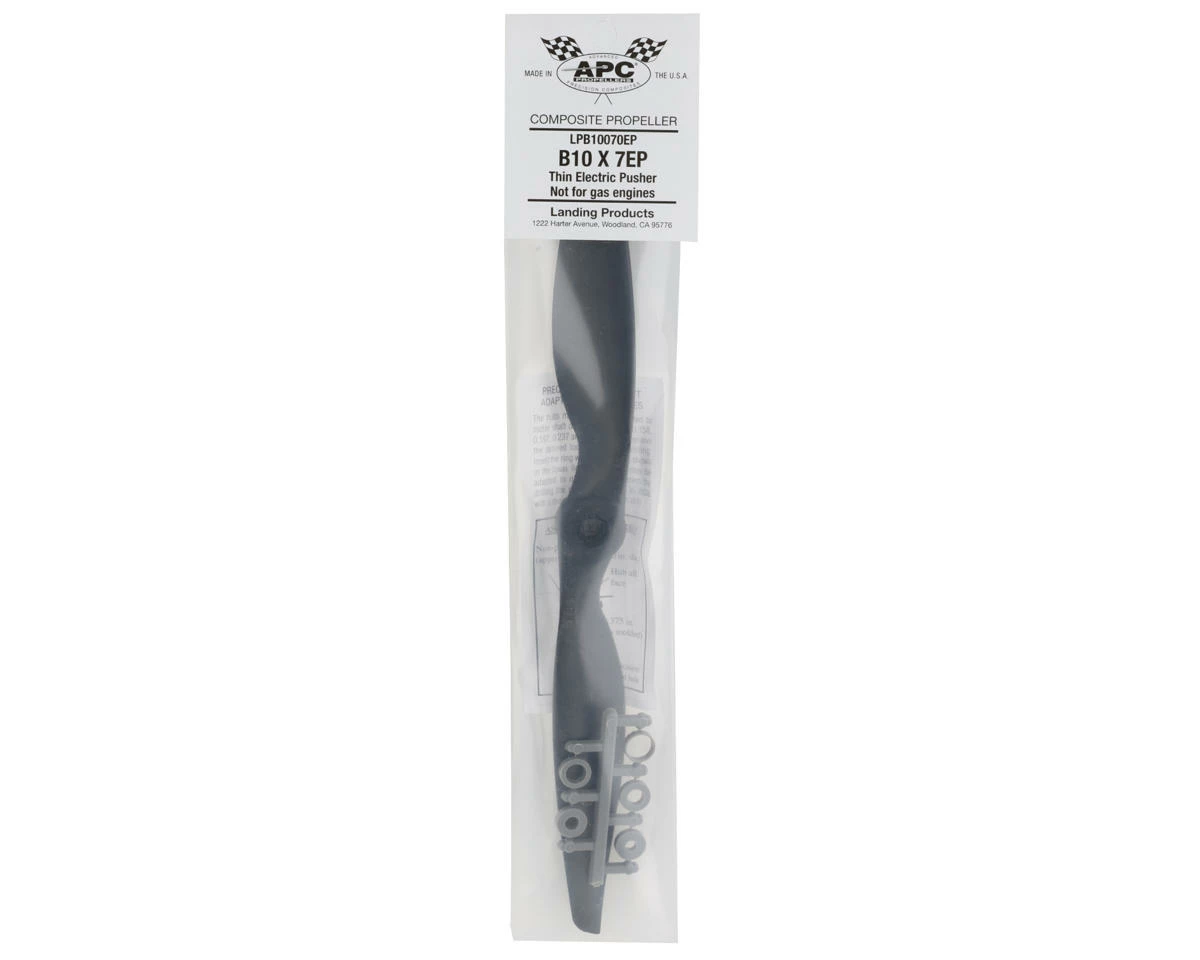

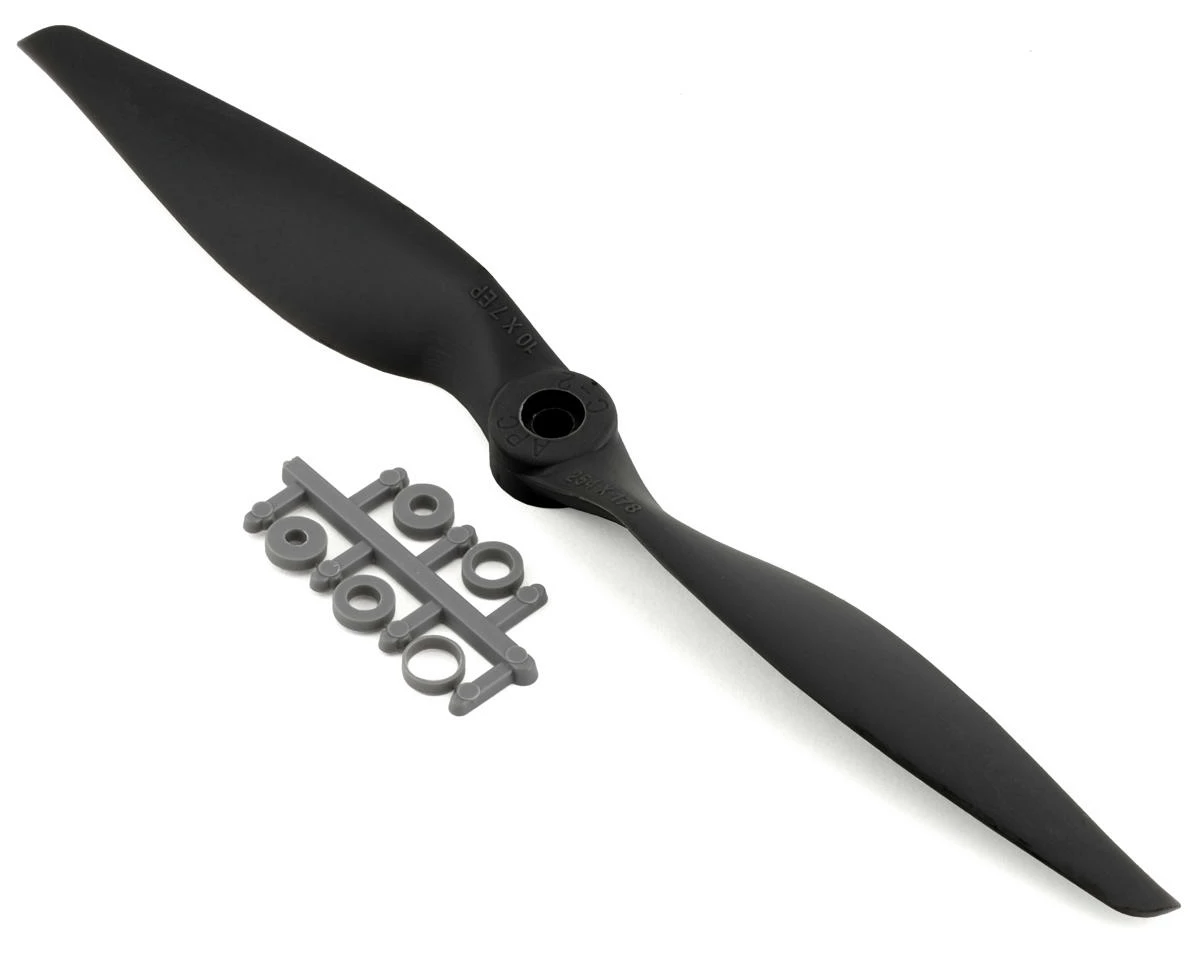

APC 10x7E Thin Electric Pusher Propeller (Black)

This is the APC 10x7E Thin Electric Pusher Propeller. APC propellers are manufactured using a pultrusion process which allows for a higher fiber (60%) to resin (nylon binder) density. This provides substantially higher strength and stiffness than glass-filled nylon. The additional stiffness is beneficial to control vibration resonance response. The higher strength allows the use of thinner cross-sections, beneficial to weight and aerodynamic efficiency.

NOTE: This is a “Pusher” reverse rotation propeller.

Features:

• Computer-optimized design gives these props a thinner profile and more “bite” with less noise
• Lightweight molded nylon construction reduces rotating mass for higher output and longer life
• Reinforcing fibers help maintain true, constant pitch at any RPM

Specifications:

• Propeller Diameter: 10in (254mm)
• Pitch: 7in (177.8mm)
• Hub Diameter: 0.80in (20.32mm)
• Hub Thickness: 0.40in (10.16mm)
• Shaft Diameter: 0.25in (6.35mm)
• Weight: 0.71oz (20.12g)
• Rotation: CW (Reverse/Pusher)

This product was added to our catalog on February 13, 2023
