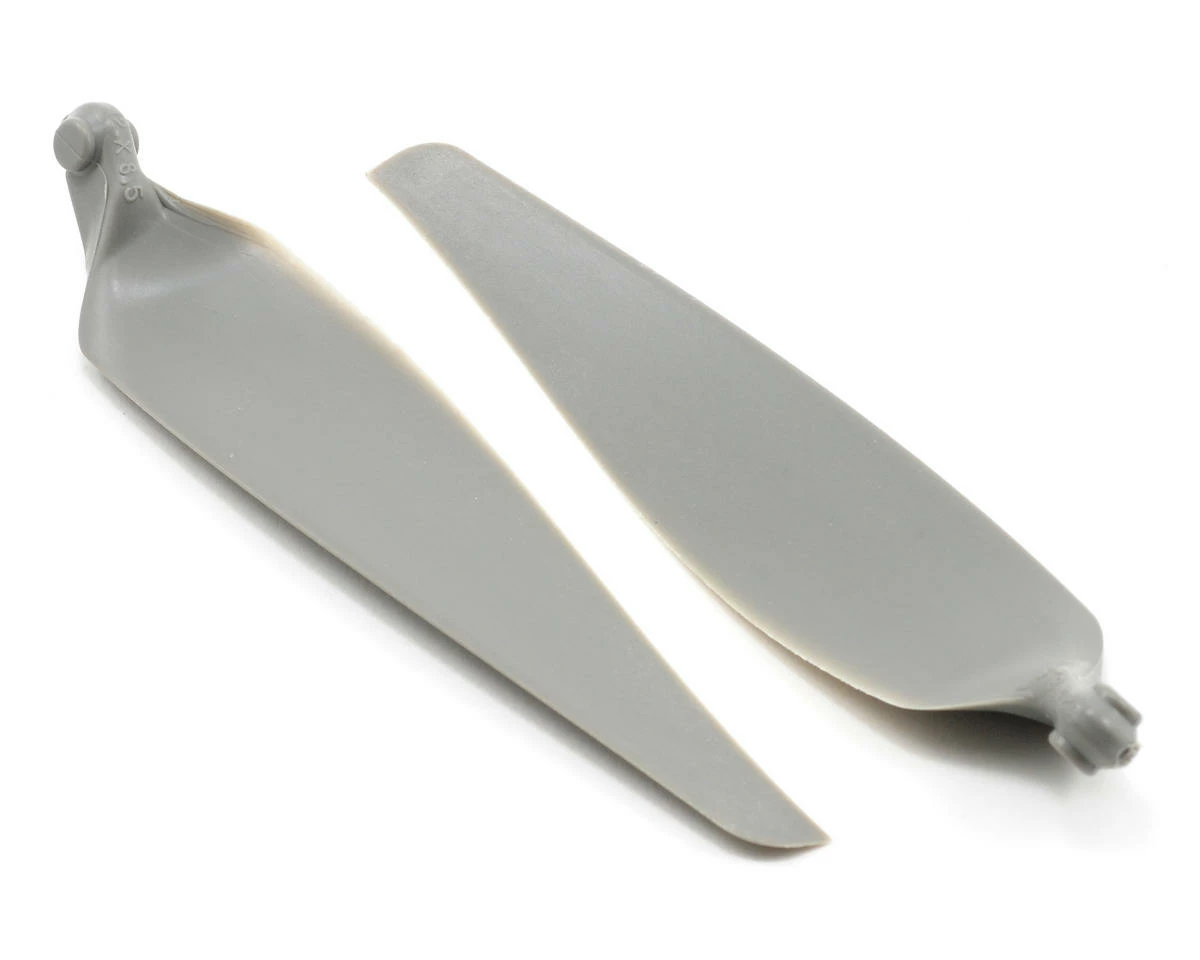

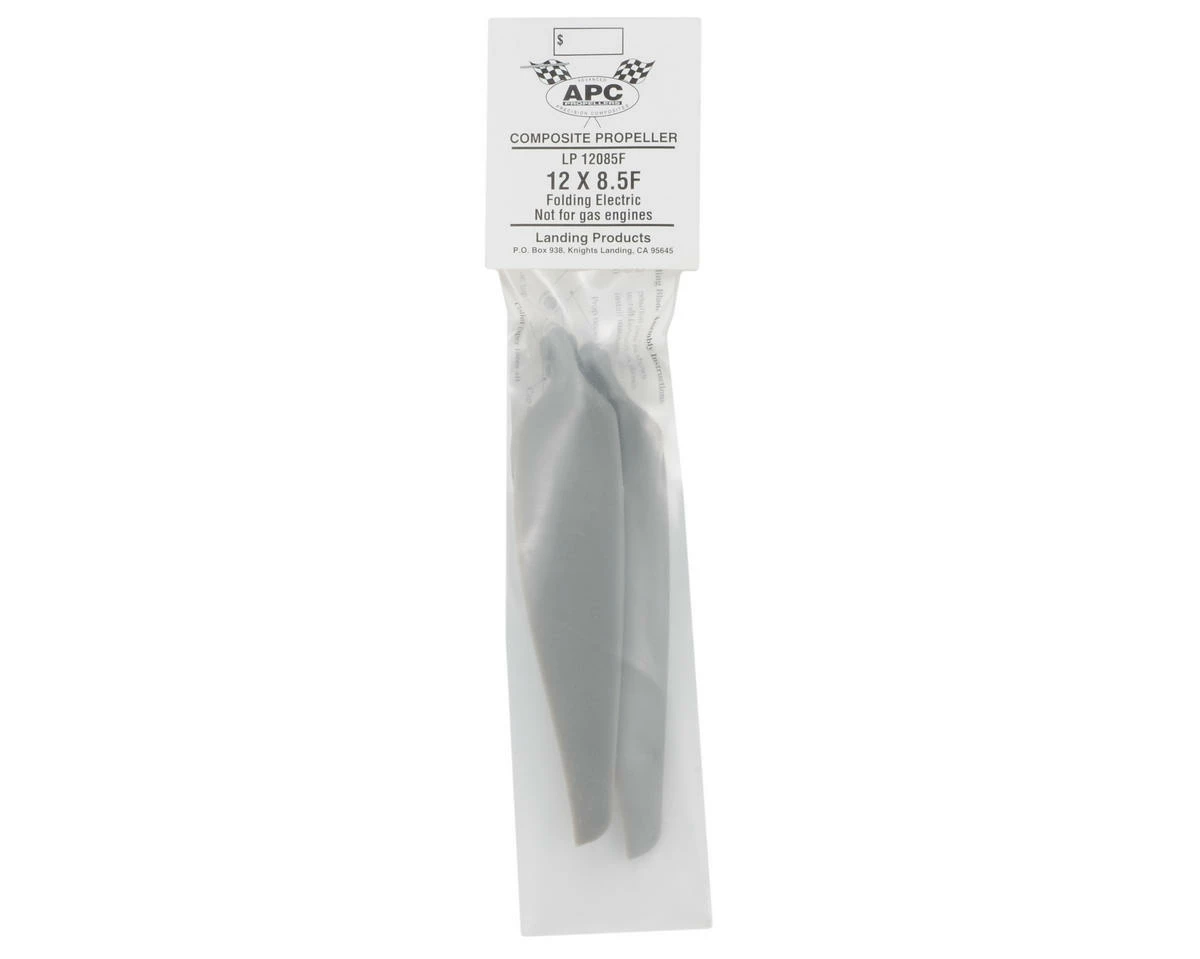

APC 12×8.5 Folding Electric Propeller

This is the APC 12×8.5 Folding Electric Propeller. APC propellers are manufactured using a pultrusion process which allows for a higher fiber (60%) to resin (nylon binder) density. This provides substantially higher strength and stiffness than glass-filled nylon. The additional stiffness is beneficial to control vibration resonance response. The higher strength allows the use of thinner cross-sections, beneficial to weight and aerodynamic efficiency.

Features:

• Computer-optimized design gives these props a thinner profile and more “bite” with less noise
• Lightweight molded nylon construction reduces rotating mass for higher output and longer life
• Reinforcing fibers help maintain true, constant pitch at any RPM

Specifications:

• Propeller Diameter: 12in (304.8mm)
• Pitch: 8.5in (215.9mm)
• Hub Diameter: 1.77in (44.958mm)
• Hub Thickness: 0.39in (10mm)
• Shaft Diameter: 0.23in (6mm)
• Weight: 0.74oz (20.98g)
• Rotation: CCW (Standard/Tractor)

This product was added to our catalog on July 17, 2009
