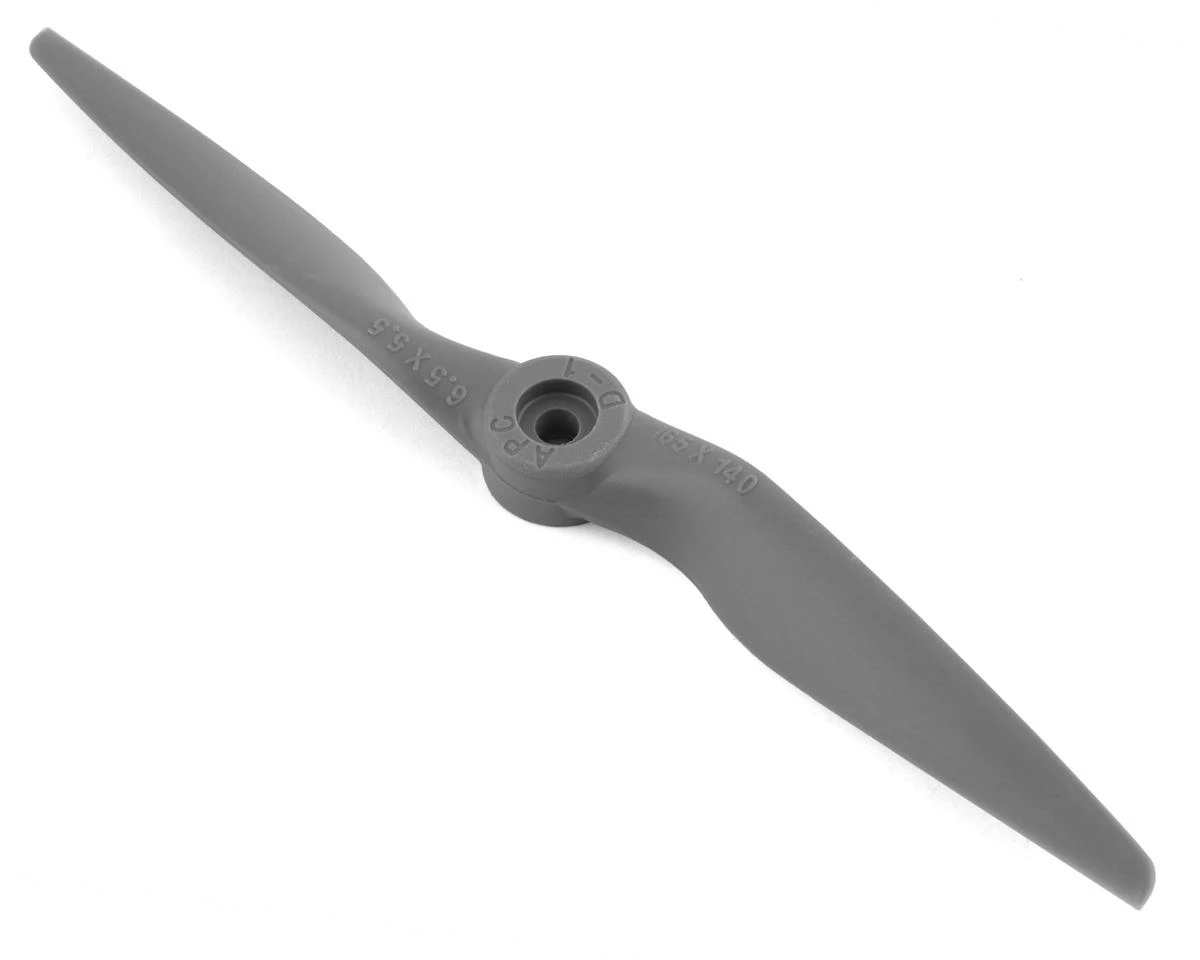

APC 6.5×5.5 Pylon Propeller

This is the APC 6.5×5.5 Pylon Propeller. APC propellers are manufactured using a pultrusion process which allows for a higher fiber (60%) to resin (nylon binder) density. This provides substantially higher strength and stiffness than glass-filled nylon. The additional stiffness is beneficial to control vibration resonance response. The higher strength allows the use of thinner cross-sections, beneficial to weight and aerodynamic efficiency.

Features:

• Computer-optimized design gives these props a thinner profile and more “bite” with less noise
• Lightweight molded nylon construction reduces rotating mass for higher output and longer life
• Reinforcing fibers help maintain true, constant pitch at any RPM

Specifications:

• Propeller Diameter: 6.5in (165.1mm)
• Pitch: 5.5in (139.7mm)
• Hub Diameter: 0.65in (16.51mm)
• Hub Thickness: 0.4in (10.16mm)
• Shaft Diameter: 0.19in (4.826mm)
• Weight: 0.39oz (11.06g)
• Rotation: CCW (Standard/Tractor)

This product was added to our catalog on February 25, 2023
