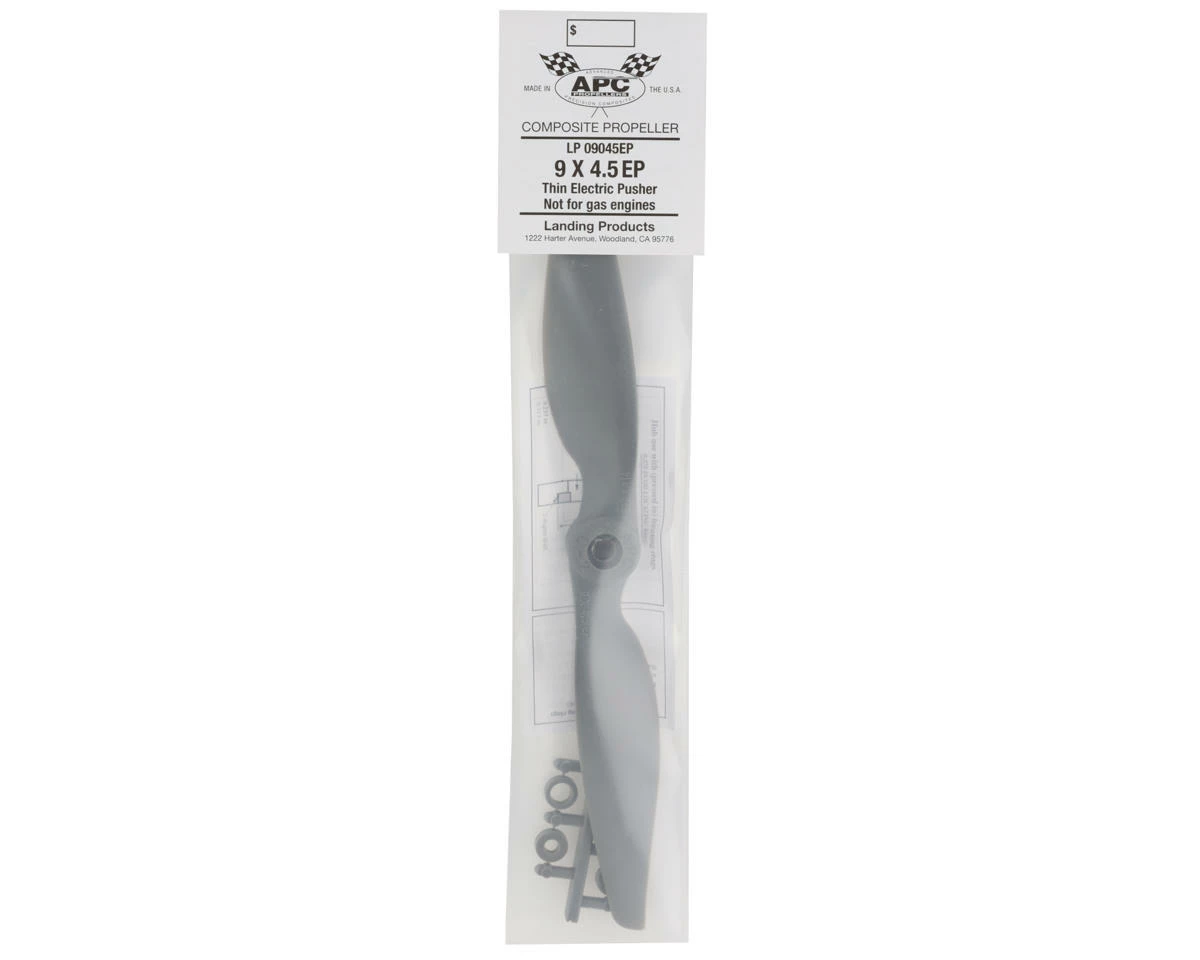

APC 9×4.5 Thin Electric Pusher Propeller

This is the APC 9×4.5 Thin Electric Pusher Propeller. APC propellers are manufactured using a pultrusion process which allows for a higher fiber (60%) to resin (nylon binder) density. This provides substantially higher strength and stiffness than glass-filled nylon. The additional stiffness is beneficial to control vibration resonance response. The higher strength allows the use of thinner cross-sections, beneficial to weight and aerodynamic efficiency.

NOTE: This is a “Pusher” reverse rotation propeller.

Features:

• Computer-optimized design gives these props a thinner profile and more “bite” with less noise
• Lightweight molded nylon construction reduces rotating mass for higher output and longer life
• Reinforcing fibers help maintain true, constant pitch at any RPM

Specifications:

• Propeller Diameter: 9in (228.6mm)
• Pitch: 4.5in (114.3mm)
• Hub Diameter: 0.80in (20.32mm)
• Hub Thickness: 0.38in (9.65mm)
• Shaft Diameter: 0.25in (6.35mm)
• Weight: 0.63oz (17.86g)
• Rotation: CW (Reverse/Pusher)

This product was added to our catalog on February 13, 2023
